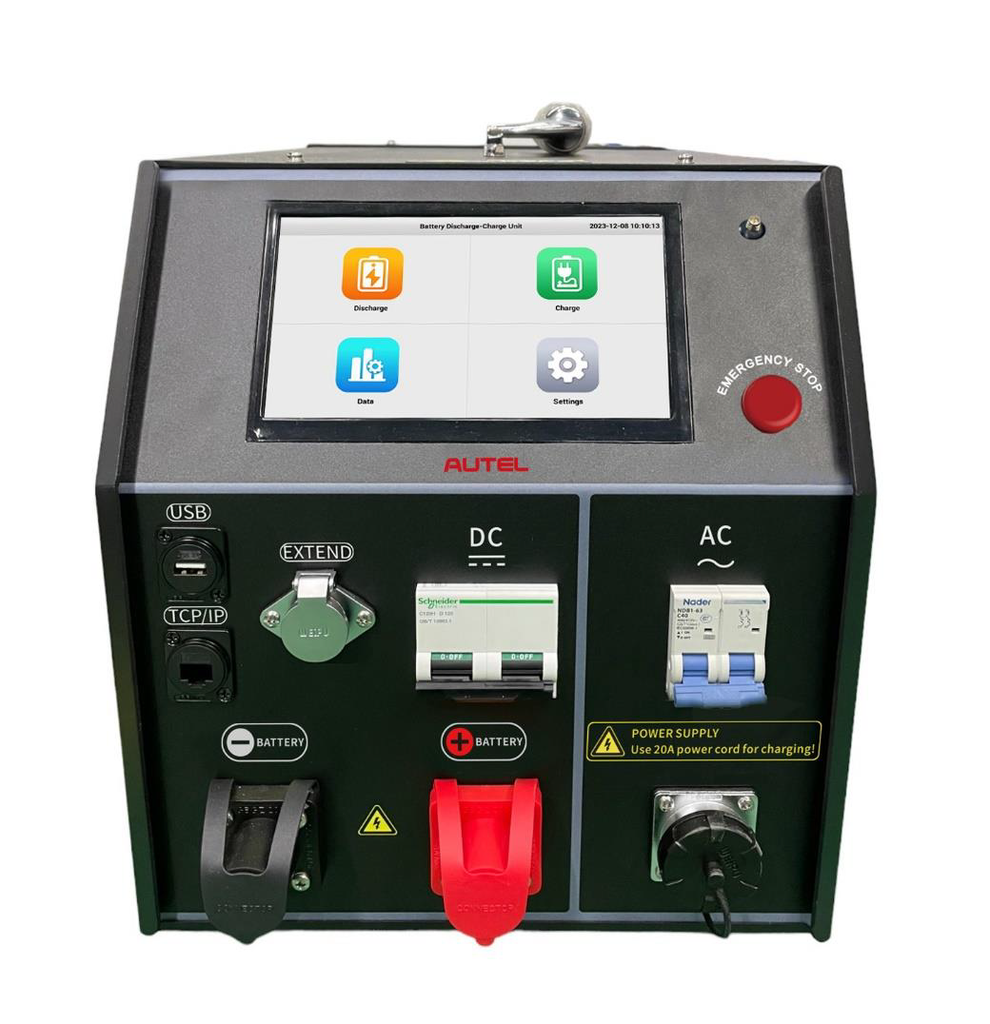

MaxiEV CDT100
The MaxiEV CDT100 charges and discharges high-voltage battery modules. Constant-current and constant-power modes, cell-voltage monitoring and recorded results support electric-vehicle battery service.
Charge/discharge voltage2–285 V DC
Cell voltage0–5 V
Features
Battery service monitoring
The screen brings voltage readings and service results together, with graph zoom for closer inspection. Operating modes let technicians configure the unit for the intended module charging, discharging or activation process and the accessories in use.
Global catalogue
Product from the global Autel catalogue. Confirm configuration and availability for Portugal before selecting the equipment. The Autel US page lists this model as discontinued in the North American market.
Technical data
| Charge/discharge voltage | 2–285 V DC |
|---|---|
| Maximum discharge | 150 A / 7.2 kW |
| Maximum charge | 100 A / 4.4 kW |
| Power supply | 110/220 V AC |
| Cell voltage | 0–5 V |
| Dimensions | 530 × 300 × 350 mm |
| Weight | 23.4 kg |
Documentation
Original manufacturer documents, in the language supplied with each file.
Reference: CDT100Explore the product →
