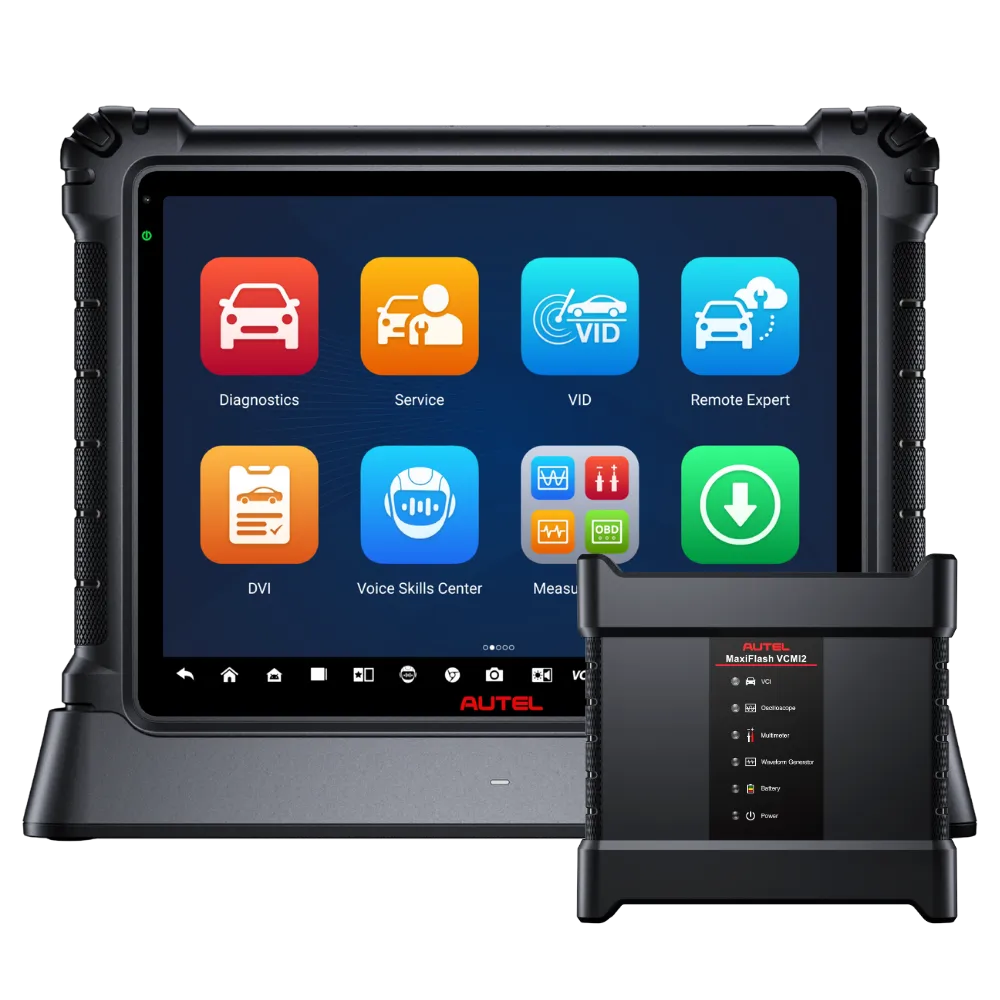

Autel MaxiSYS Ultra S2 AI

Live data analysis

Graphical analysis brings related parameters together to help identify operating, performance and emissions faults. Data fusion makes it possible to follow changes in values from several systems.

• Select multiple PIDs to compare related parameters during the same diagnosis.
• Record and review reference samples before and after repair.
• View the system operating process with relevant values at the analysis points.
• Split-screen diagnostics with multiple applications through Diagnostics + X.

Topology 3.0 and digital inspection

The network view uses colour to distinguish module status and help locate the source of an anomaly.

• Control unit mapping and network communication analysis.
• MAX voice assistant to open menus, start scans and run supported functions.
• Multipoint digital vehicle inspection to document vehicle condition.
• Organise diagnostics by module and system.

MaxiFlash VCMI2: communication and measurement

The six-function interface combines vehicle communication with measurement tools to relate symptoms to electrical signals.

• VCI interface and J2534 pass-thru programming.
• Four-channel oscilloscope, multimeter and waveform generator.
• CAN Bus testing and access to the Remote Expert service.
• Open the oscilloscope from live data analysis.

Electrical tests and documentation

The platform includes electrical tests for components and systems, allowing measurements to be related to diagnostic data.

• AC and DC charging tests and high-voltage component tests.
• Analyse interlock loop signals and power-on control.
• Resolver sensor and thermal management system tests.
• Check parasitic current draw and compare signals.

Coverage and availability

Each operation depends on the vehicle make, model, year and system. Check Autel coverage and service requirements before selecting a coding, programming or calibration function.
